Comment installer ou remplacer l'inverseur de mon robinet de cuisine avec d'un inverseur vertical ?

Cet article explique comment remplacer un inverseur vertical pour un robinet de cuisine.

Pour remplacer l'inverseur, vous devez :

  1. Enlevez l'ancien inverseur
  2. Installez le nouvel inverseur
  3. Réinstallez le bec et vérifier les fuites

Remarque : avant d'effectuer tout travail sur votre robinet, veuillez fermer l'alimentation en eau du robinet.

Une fois l'eau coupée, vous êtes prêt à commencer.



Étape 1 - Enlevez l'ancien inverseur

  1. Enlevez le bec du robinet

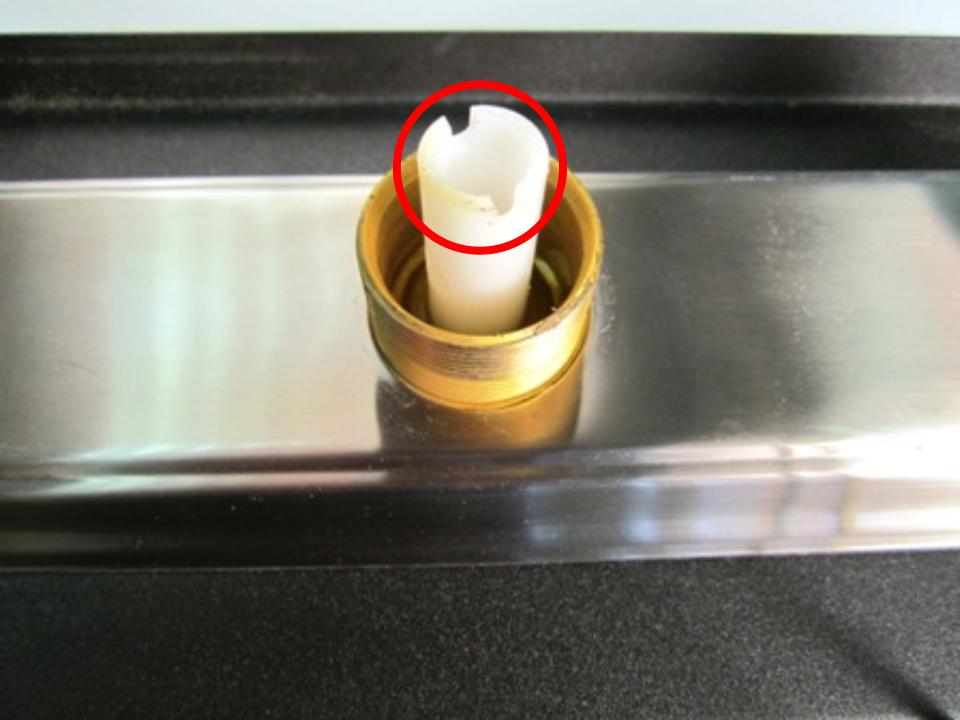

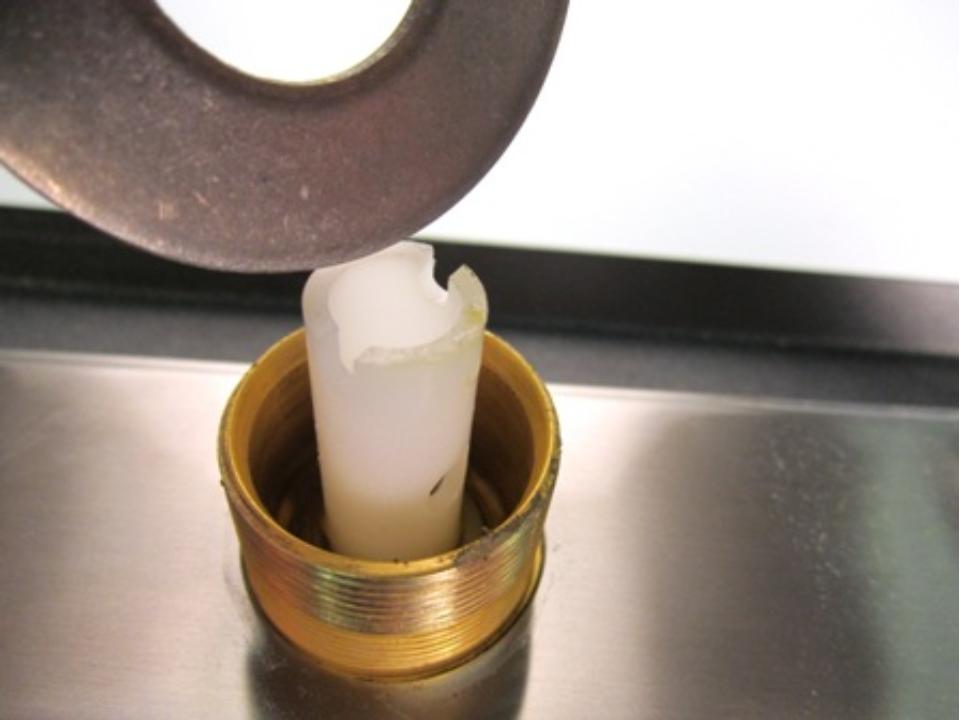

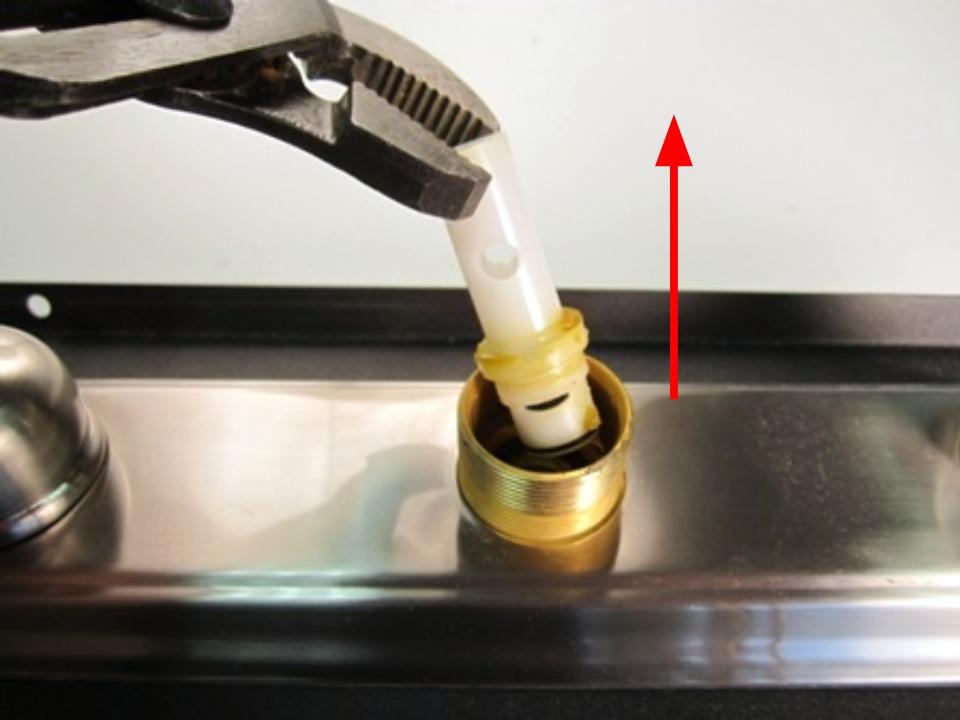

  2. Une fois le bec enlevé, le haut de l'inverseur doit être visible. Localisez les deux ouvertures et insérez un outil ou un objet plat. Tournez dans le sens contraire des aiguilles d'une montre jusqu'à ce qu'il soit complètement retiré du corps du robinet.

     Once the spout has been removed, the top of the diverter should be visible. Locate the two openings and insert a flat tool or object. Turn counter-clockwise until it is completely removed from the faucet body.

     Once the spout has been removed, the top of the diverter should be visible. Locate the two openings and insert a flat tool or object. Turn counter-clockwise until it is completely removed from the faucet body.

    Once the spout has been removed, the top of the diverter should be visible. Locate the two openings and insert a flat tool or object. Turn counter clockwise until it is completely removed from the faucet body.

    Once the spout has been removed, the top of the diverter should be visible. Locate the two openings and insert a flat tool or object. Turn counter clockwise until it is completely removed from the faucet body.



Étape 2 - Installez le nouvel inverseur

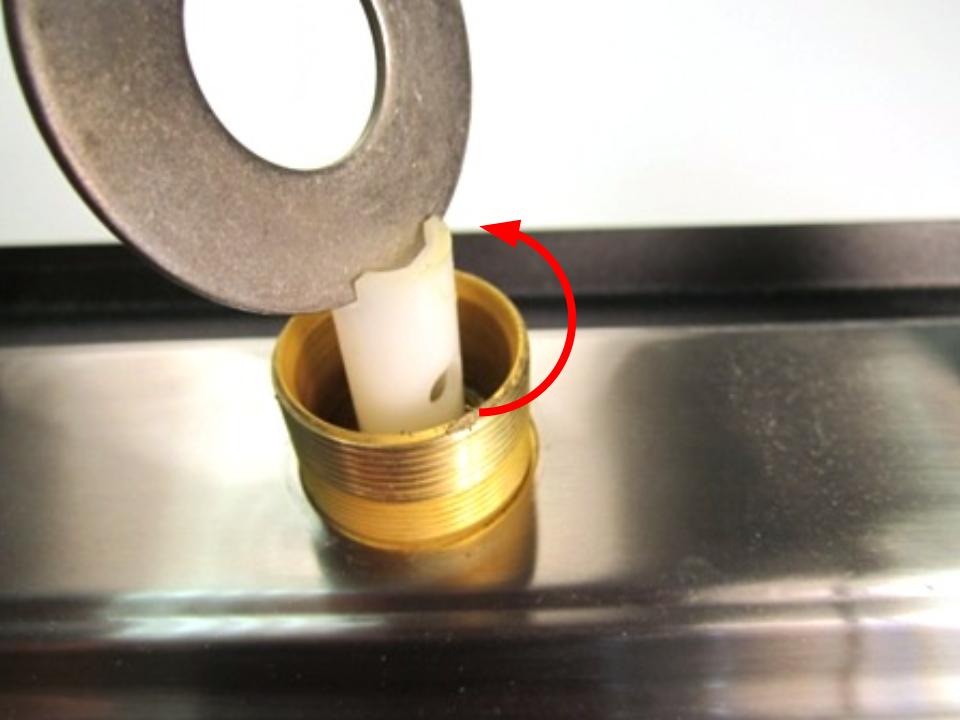

  1. Faites glisser l'inverseur dans le corps du robinet. À l'aide de l'outil que vous avez utilisé pour retirer l'inverseur, vissez l'inverseur dans le corps du robinet en tournant dans le sens des aiguilles d'une montre.

    Slide the diverter into the faucet body. Using the tool you used to remove the diverter, screw the diverter into the faucet body by turning clockwise.

    Slide the diverter into the faucet body. Using the tool you used to remove the diverter, screw the diverter into the faucet body by turning clockwise.

Étape 3 - Réinstallez le bec et vérifier les fuites

  1. Réinstaller le bec. Une fois le bec en place, ouvrez le robinet et laissez couler l'eau pendant 10 minutes. Surveillez attentivement toute fuite.
