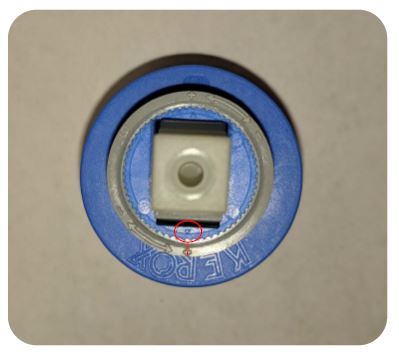

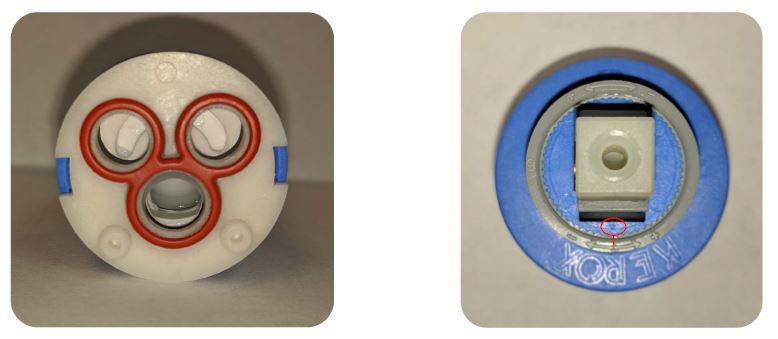

Turn the cartridge so the position matches the pictures below. When the small arrow points to the center of the +/-range, the full range of temperature is available.

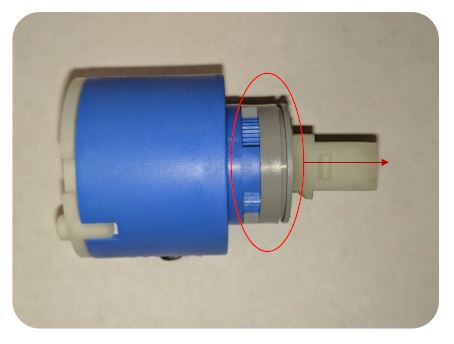

Pull the gray ring off to adjust the temperature limit.
Position the gray ring on the cartridge so the center of the +/-range is to the left or right of the small arrow. Once the desired position is established, press the gray ring back on the cartridge.

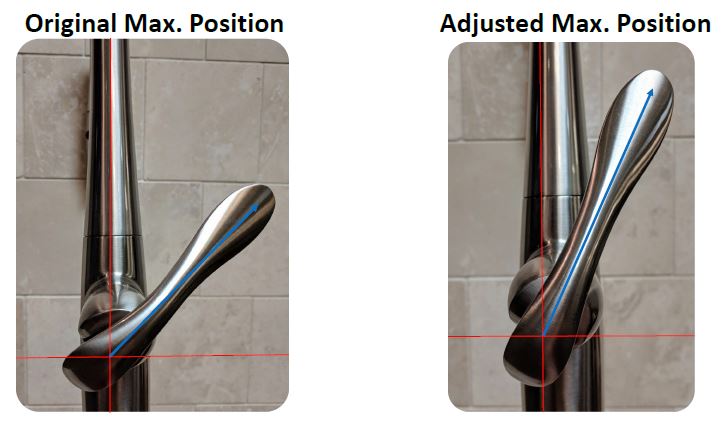

Once the handle is attached to the adjusted cartridge and installed to the faucet, there should be a difference in the range of motion of the handle, as well as the range of temperature available.
