How Do I Install Or Replace A Handle That Uses A Set Screw?

This article will explain how to remove and install a handle that uses a set screw.

Please note that the images are for reference only. The product shown in this article may differ from yours, but the information below is still relevant.

To remove and install a handle that uses a set screw, you will need to:

1. Locate and loosen the set screw
2. Remove the handle
3. Install the handle

Step 1 - Locate and loosen the set screw

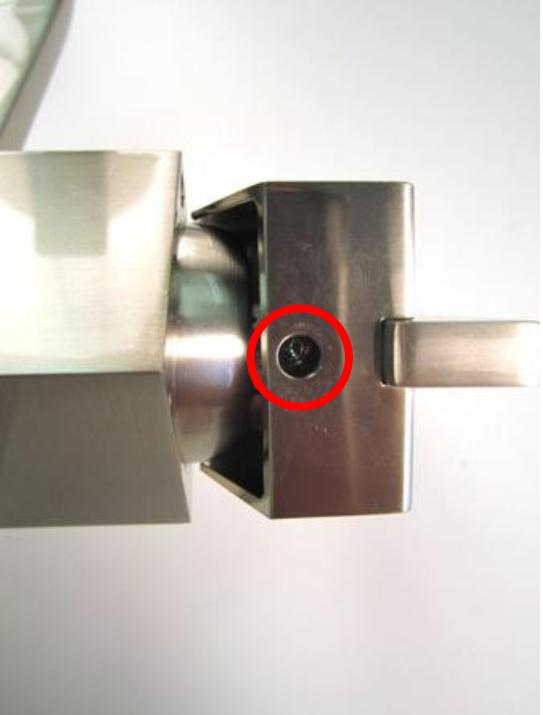

a - Locate the opening for the set screw. It is most likely covered by a rubber cap or button. The cap can be red, blue, black or half red/half blue. Remove the rubber cap with your fingers.

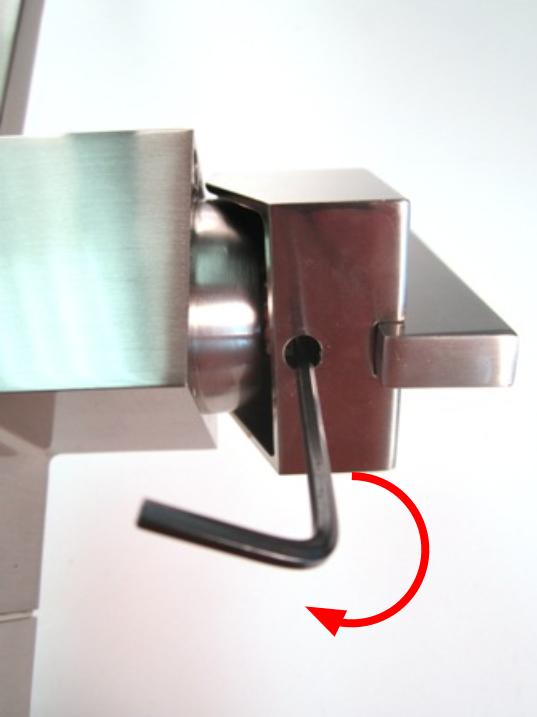

b- With the rubber cap removed, you should now have access to the set screw. Insert the hex wrench into the opening so that it engages the screw. Turn counter-clockwise a quarter turn to loosen the set screw.

Step 2 - Remove the handle

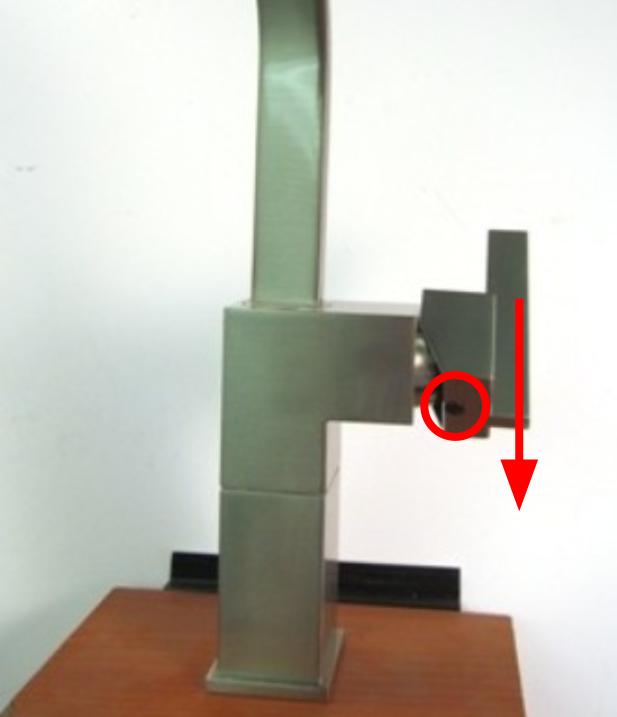

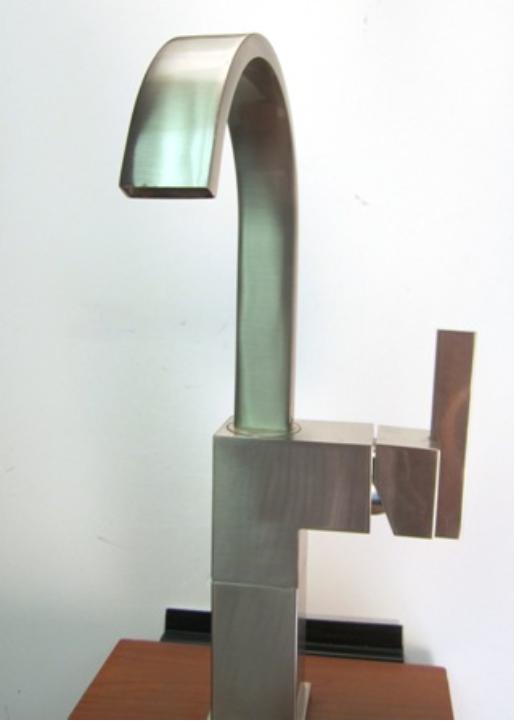

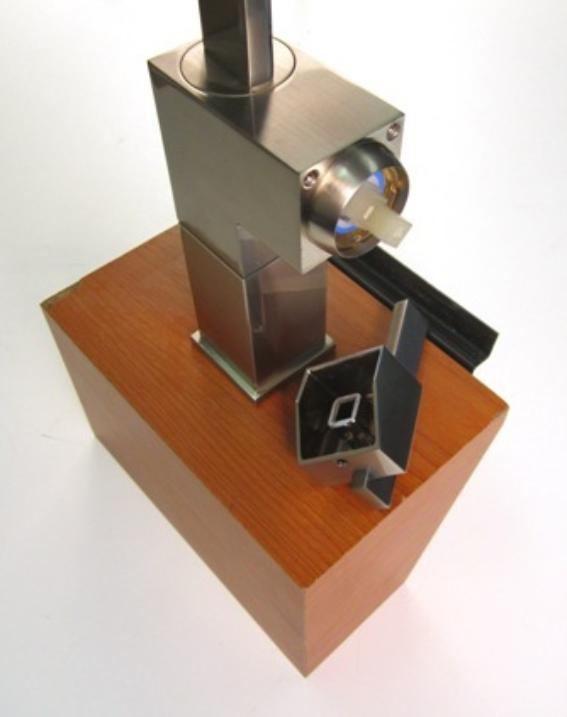

a - Once the set screw is loosened, pull the handle away from the faucet body. The handle should come off easily.

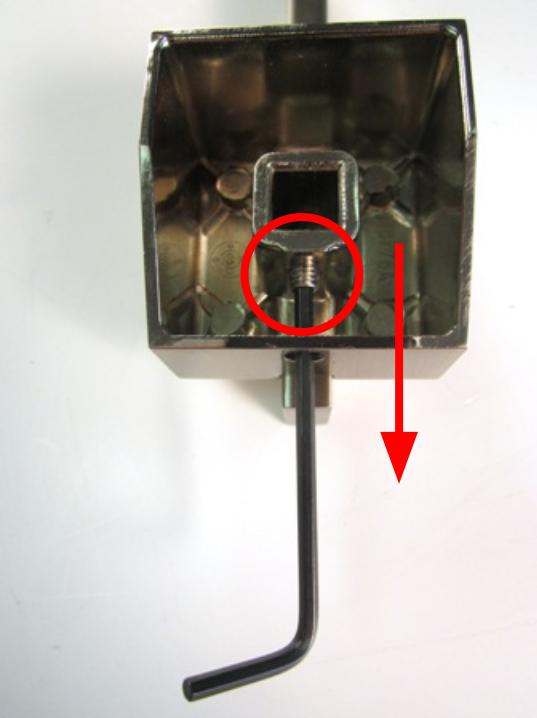

b - If you are installing a new handle and wish to re-use the set screw from the previous handle, use the hex wrench to unscrew the screw until it is completely removed.

Step 3 - Install the handle

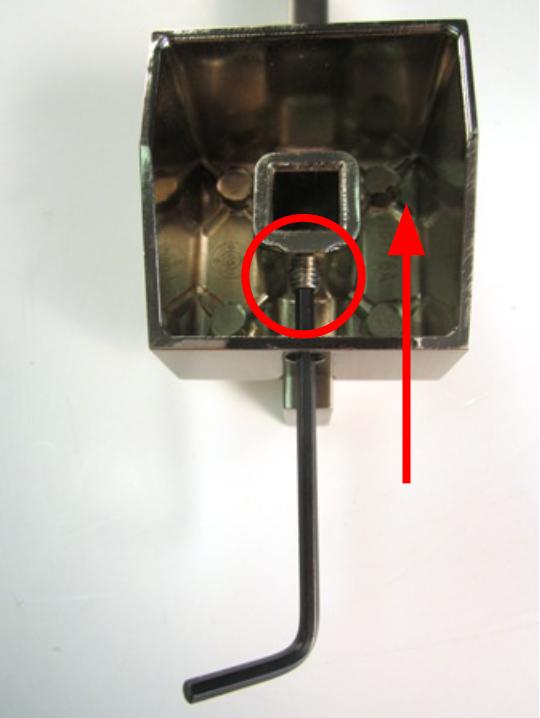

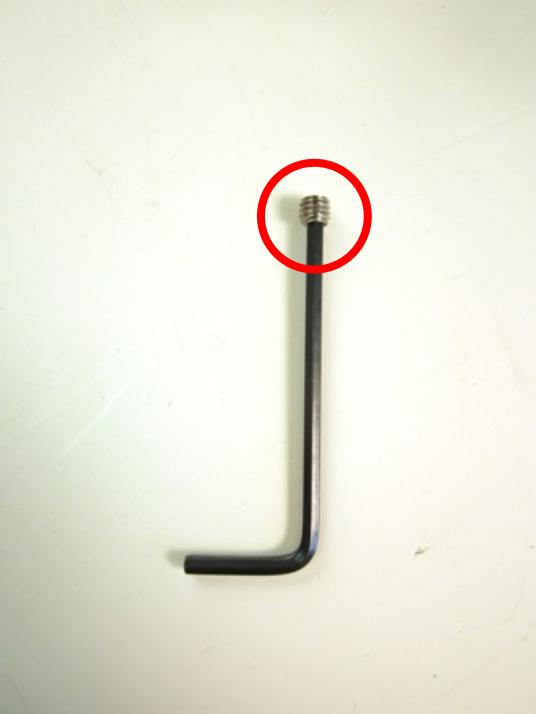

a - If you are installing a new handle, install the set screw on the new handle. To do so,  place the set screw on the tip of the hex wrench. Use the hex wrench to install the set screw on the new handle.

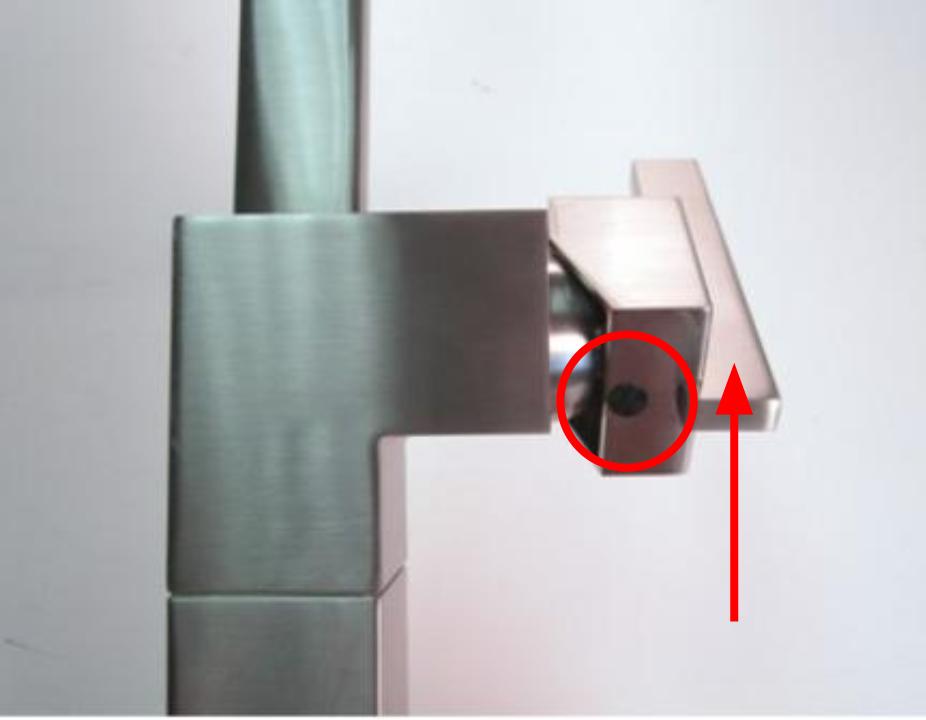

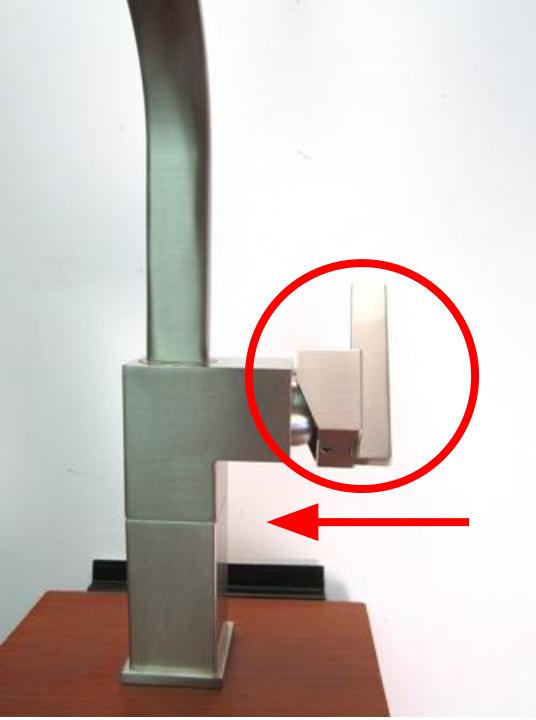

b - Install the handle onto the faucet. It should slide easily onto the cartridge stem or handle adapter.

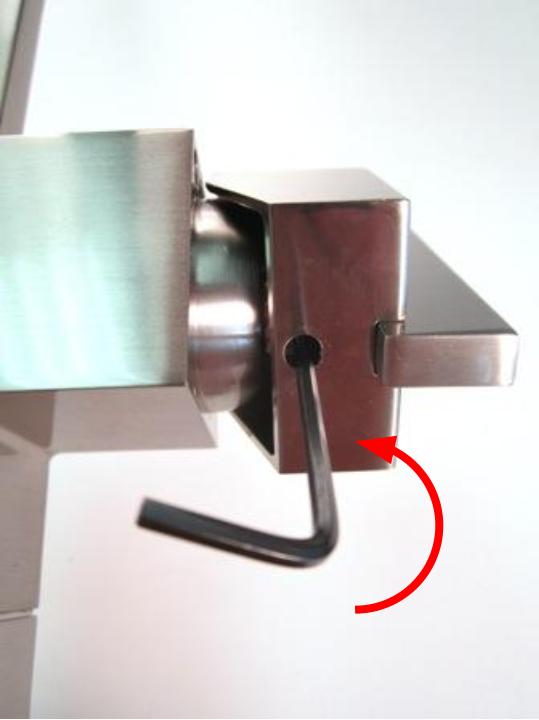

c - Use the hex wrench to tighten the set screw by turning clockwise.

d - Re-install the rubber cap.
