**Please note the product images shown in this article are for reference use and may differ from yours. However, the information below is still relevant.**

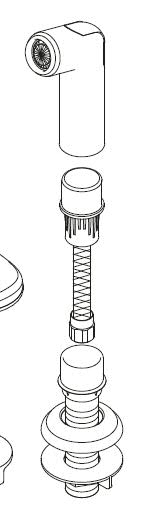

| Pull-Out or Pull Down Spray head | Spray head on deck plate | Side-mounted spray head |
|---|---|---|
To install a kitchen faucet spray head, you will need to:
- Remove the old spray head.
- Install the new spray head.
- Test for leaks.
Step 1 - Remove the old spray head
- Remove the old spray head by unscrewing the spray head from the spray hose counter-clockwise .
- Do not let go of the hose. Hold on to it to make sure that it does not retract back into the faucet body.
| Pull-Out or Pull Down Spray head | Spray head on deck plate or on side |
|---|---|

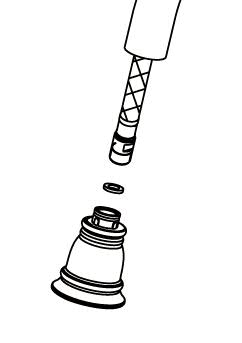

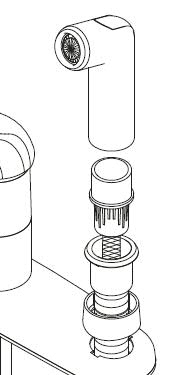

Step 2 - Install the new spray head
- To install the new spray head onto the hose, twist the threaded collar of the hose onto the threaded end of the spray head.
- Hand tighten.
| Pull-Out or Pull Down Spray head | Spray head on deck plate or on side |
|---|---|
Step 3 - Test for leaks
Turn the faucet on and use the spray head several times. If a water leak is visible, remove the spray head and inspect for damage. If no damage is visible, re-install and test again.
| Pull-Out or Pull Down Spray head | Spray head on deck plate or on side |
|---|---|
