The SecureConX Quick Weight system comes as a 2 piece weight.
Below is a quick installation video
Follow these steps for installation:

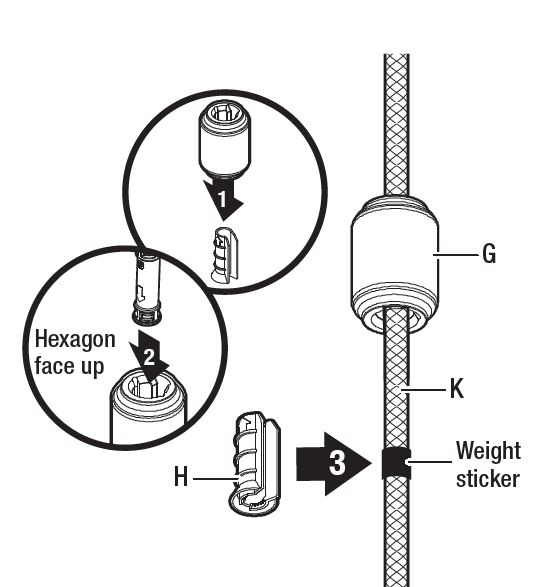

- Remove the weight clip (H) from the weight (G).

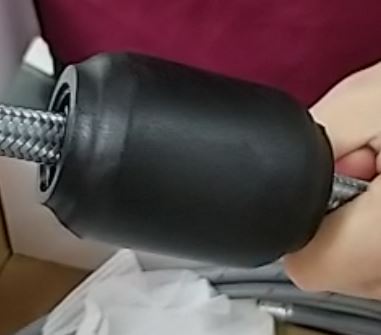

- Install the weight (G) through the spray hose (K). Hexagon side facing up, past the marked weight sticker location or a desired location.
NOTE: Quick Connector does not need to be removed from the spray hose before inserting the spray hose through the weight. - Insert the weight clip (H) at the weight sticker on the pull-down spray hose (K). Place the weight clip (H) on the hose with the cone side towards the quick connect.

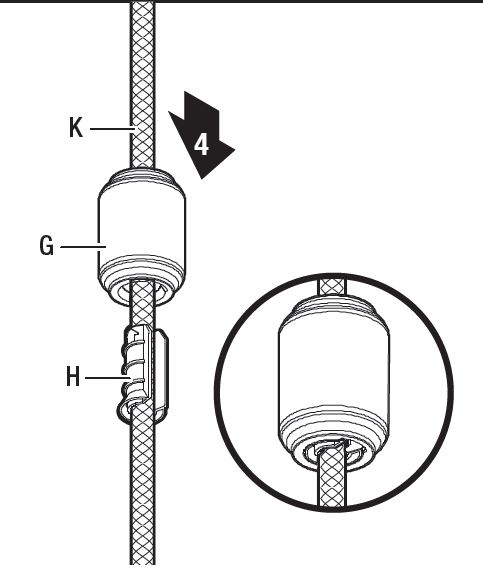

- Slide the weight (G) down the hose and onto the clip (H).
For the removal of the weight:

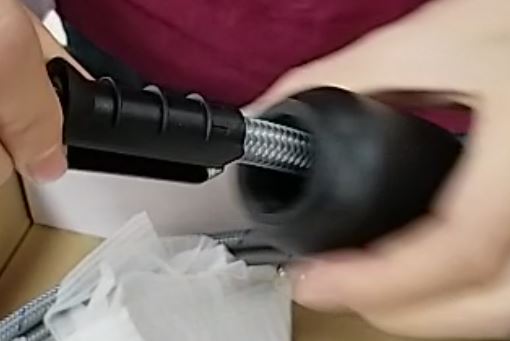

- Slide the weight (G) off the clip (H).
- Remove the clip (H) from the spray hose.
- Remove the weight (G) by sliding it off the spray hose.
NOTE: Quick Connector does not need to be removed from the spray hose before removing the weight (G) from the spray hose.
