Installation Instructions for Push Button

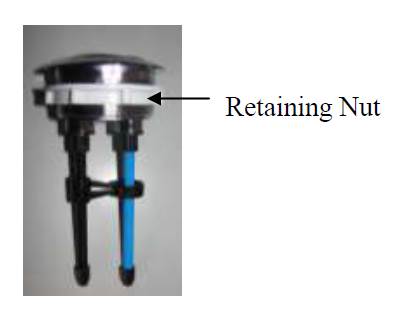

- Before installing the push button, loosen and remove the retaining nut first.

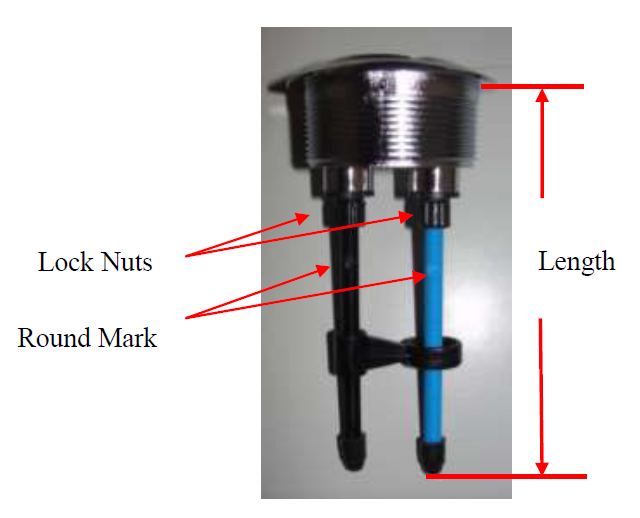

- Check if the threaded rods are adjusted to the right length.
Table 1: Standard Rod lengths for Models 533515, 486082, 386082, 486084 & 918020.
| Model No. | Push Button Part No. | Length |
| 533515 / 391575 | A700342CP-GBG1 | 110 ± 3 mm |
| 486082 | A700344CP-GBG1 | 80 ± 3 mm |
| 386082 | A700355CP-GBG1 | 123 ± 2 mm |
| 386082 | A700318CP-GBG1 | 105 ± 2 mm |
| 486084 / 918020 | A700374CP-GBG1 | 87 ± 1 mm |
The rod length can be adjusted by tightening/loosening two lock nuts.
